5. Mining Protocol

The Mining Protocol enables the distribution of work to mining devices and the submission of proof-of-work results.

It can be used without Job Declaration and Template Distribution Protocols, where a subset of the messages are used by a pool to unilaterally distribute work to miners.

Alternatively, it can be used in conjunction with Job Declaration and Template Distribution Protocols, where both pool and miners coordinate to decide what is valid work.

5.1 Job

A Job consists of a unit of work containing all the necessary information about the hashing space over some candidate block header.

Note that the messages distributing Jobs (NewMiningJob, NewExtendedMiningJob) do not carry all of this information on their own: some fundamental properties of a Job are inherited from the state of the Channel it is distributed on — e.g. the current target, the prev_hash being worked on, and the extranonce_prefix (see §5.2 Channels).

Each Mining Device has to work on a unique part of the whole search space. The full search space is defined in part by valid values in the following block header fields:

• nonce header field (32 bits)
• version header field (24 bits, as specified by BIP 323)
• nTime header field (32 bits timestamp, limited under MAX_FUTURE_BLOCK_TIME)

The other portion of the block header that is used to define the full search space is the Merkle Root, which is deterministically computed from:

• Coinbase transaction
• Transaction (ordered) list

All roles in Stratum v2 MUST NOT use transaction selection/ordering for additional hash space extension. This stems both from the concept that miners/pools should be able to choose their transaction set freely without any interference with the protocol, and also to enable future protocol modifications to Bitcoin. In other words, any rules imposed on transaction selection/ordering by miners not described in the rest of this document may result in invalid work.

Mining servers MUST assign a unique subset of the search space to each mining device, otherwise the mining devices will waste energy with overlapping search.

This protocol explicitly expects that upstream server software is able to manage the size of the hashing space correctly for its clients and can provide new and unique Jobs quickly enough, based on the hashpower of each client.

The protocol defines two main types of Jobs: Standard Job and Extended Job.

This separation vastly simplifies the protocol implementation for clients that don’t support Extended Job, as they only need to implement the subset of protocol messages related to Standard Job (see Mining Protocol Messages for details).

Additionally, a Job (either Standard or Extended) also can be labeled as a Future Job and/or Custom Job.

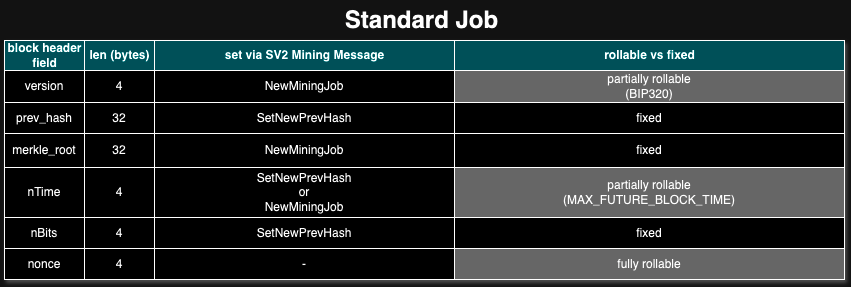

5.1.1 Standard Job

Standard Jobs are restricted to fixed Merkle Roots, where the only modifiable bits are under the version, nonce, and nTime fields of the block header.

We call this header-only mining (HOM), and it is the smallest assignable unit of search space by the protocol.

The size of the search space for one Standard Job, given a fixed nTime field, is 2^(NONCE_BITS + BIP323_VERSION_ROLLING_BITS) = ~72PH/s, where NONCE_BITS = 32 and BIP323_VERSION_ROLLING_BITS = 24. This is a guaranteed space before nTime rolling (or changing the Merkle Root by sending a new Job).

Standard Jobs are distributed via the NewMiningJob message, which can ONLY be sent via Standard Channels.

Note that Mining Devices with hashrate above 72 PH/s will outrun the true time when rolling the nTime field. This is not necessarily a problem, as long as the Job remains valid within the limits defined by the MAX_FUTURE_BLOCK_TIME constant of the Bitcoin protocol (2 hours).

Depending on the hashrate of the Mining Device, it must receive new Standard Jobs (with a different Merkle Root) frequently enough in order to avoid rolling nTime too much ahead of the true time (which could result in rejected work).

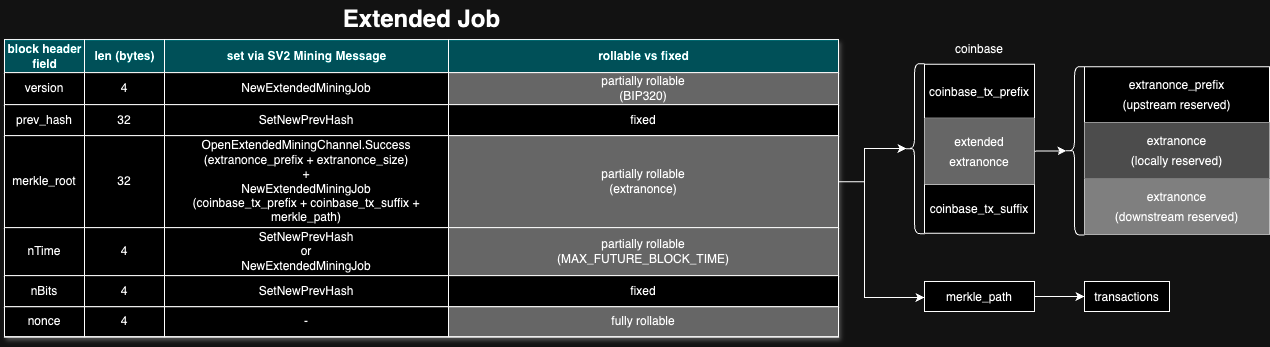

5.1.2 Extended Job

Extended Jobs allow rolling Merkle Roots, giving extensive control over the search space so that they can implement various advanced use cases such as:

• translation between Sv1 and Sv2 protocols
• difficulty aggregation
• search space splitting

Extended Jobs are distributed via the NewExtendedMiningJob message, which can be sent via:

• Group Channels
• Extended Channels

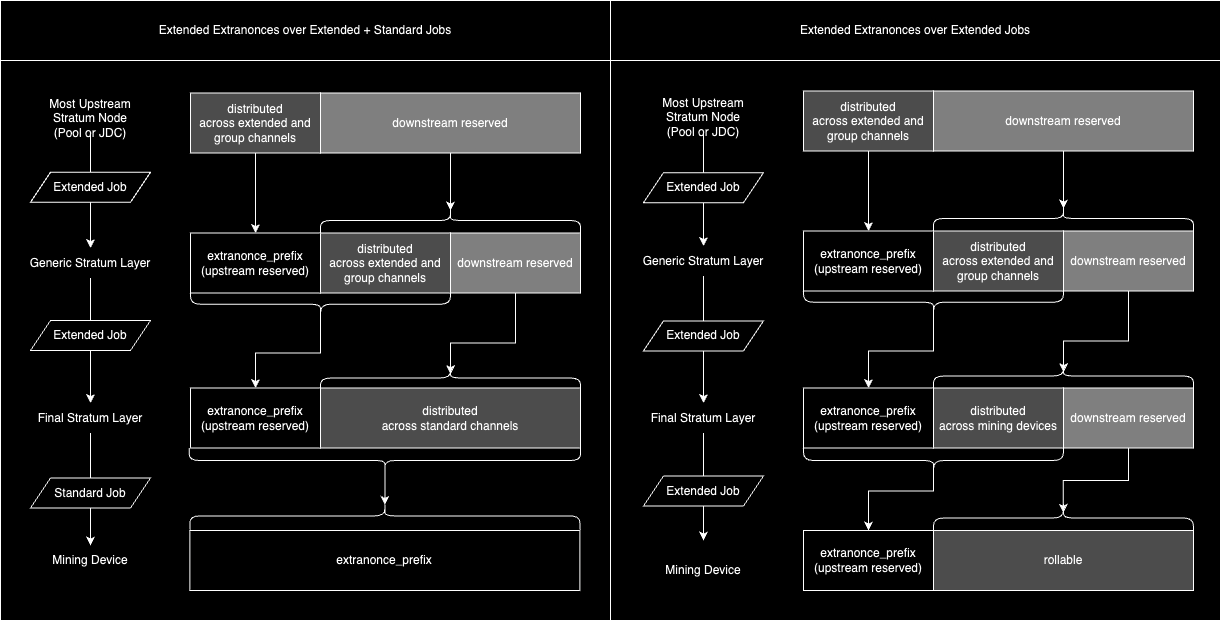

5.1.2.1 Extended Extranonce

Downstream and Upstream are relative terms. There could theoretically be multiple nested layers of Stratum Nodes (e.g.: Proxies) between a Work-Providing Node and a Mining Device.

So the protocol establishes the notion of Extended Extranonce, which is a fundamental component of Extended Jobs.

The Extended Extranonce is an array of bytes, split into three different areas:

• The extranonce_prefix bytes are reserved for the upstream layer, where fixed bytes were already established for the Extranonce and are no longer available for rolling or search space splitting.
• The locally reserved bytes is where the local layer will assign unique values for its own downstream clients, according to their hashpower.
• The downstream reserved bytes is where the downstream clients will further distribute the search space, or use for rolling (if they are Mining Devices).

In order to calculate the Merkle Root, an Extended Job carries the following data:

• merkle_path
• coinbase_tx_prefix
• coinbase_tx_suffix

An Extended Channel has the following properties:

• extranonce_prefix: the Extended Extranonce bytes that were already allocated by the upstream server.
• extranonce_size: how many bytes are available for the locally reserved and downstream reserved areas of the Extended Extranonce.

And a Standard Channel has the following property:

• extranonce_prefix the Extended Extranonce bytes that were already allocated by the upstream server.

So when some layer receives an Extended Job, it could either:

• propagate it as an Extended Job to a downstream Extended or Group Channel (via NewExtendedMiningJob notification), where the Extended Extranonce will be further split.
• convert it into multiple Standard Job notifications (NewMiningJob), where each downstream Standard Channel's extranonce_prefix is combined with coinbase_tx_prefix + coinbase_tx_suffix.

For conversion into Standard Jobs, the Coinbase Transaction is constructed by concatenating these fields in this specific order: coinbase_tx_prefix + extranonce_prefix + coinbase_tx_suffix.

The Coinbase Transaction is then combined with the merkle_path of the Extended Job to calculate the merkle_root for the Standard Job notification (NewMiningJob). Since Standard Jobs are HOM, there's no extranonce_size field on the Standard Job notification.

In case of an Extended Job broadcast to a Group Channel, its coinbase_tx_prefix carries the transaction field scriptSig length. It follows that every Standard and/or Extended Channel that belongs to the same Group Channel MUST have the exact same full Extended Extranonce size, because the coinbase transaction they are working on MUST have the same scriptSig length that is broadcast to the Group Channel.

5.1.3 Future Job

A Job with an empty template or speculated non-empty template can be sent in advance to speedup Job distribution when a new block is found on the network.

The mining server MAY have precomputed such a Job and is able to pre-distribute it for all active Channels. The only missing information to start to mine on the new block is the new prev_hash. This information can be provided independently.

Such an approach improves the efficiency of the protocol where the upstream node does not waste precious time immediately after a new block is found in the network.

The trade-off here is that a non-empty Future Job could potentially contain a transaction that was already included in the block that was just propagated on the network, which would lead to an invalid block if successfully mined.

So mining servers that provide non-empty Future Jobs SHOULD:

• never send a SetNewPrevHash for a Future Job that was later found to contain a conflicting transaction.
• minimize the probability of Future Jobs containing conflicting transactions (which leads to Future Jobs carrying less profitable templates).
• after a SetNewPrevHash is propagated for a Future Job, provide a non-Future Job for this same prev_hash as fast as possible (with a more profitable template).

5.1.4 Custom Job

A Custom Job contains a set of transactions that were chosen by the miner instead of being unilaterally imposed by the Pool.

Under the Job Declaration Protocol, upon request the Job Declarator Server (JDS) sends a mining_job_token to the Job Declarator Client.

This mining_job_token is used by JDC for:

• declaring a Custom Job to JDS (via DeclareMiningJob message of Job Declaration Protocol)
• notifying Pool about a Custom Job (via SetCustomMiningJob message of Mining Protocol)

This is a key feature of Stratum V2 that improves Bitcoin decentralization. Please see Job Declaration Protocol for more details.

5.2 Channel

The Mining Protocol is designed such that downstream Mining Devices open Channels with upstream Stratum Nodes within established Connections. These upstream Stratum Nodes could be actual Work-Providing Nodes (e.g.: Pool, or Job Declarator Client) or simply Proxies that relay messages forward.

Each Channel identifies a dedicated mining session associated with an authorized user. Upstream stratum nodes accept work submissions and specify a mining target on a per-channel basis.

There can theoretically be up to 2^32 open Channels within one Connection. This is however just a theoretical ceiling, and it does not mean that every Connection will be able to fill this full capacity (maybe the search space has already been narrowed).

All Channels are independent of each other, but share some messages broadcast from the server for higher efficiency (e.g. information about a new prev_hash). Each Channel is identified by its channel_id (U32), which is consistent throughout the whole life of the Connection. There MUST NOT be two Channels with the same ID in the same Connection.

A Proxy can either transparently allow its clients to open separate Channels with the server (preferred behavior), or aggregate open connections from downstream devices into its own open channel with the server and translate the messages accordingly (present mainly to support proxies that translate between Sv1 and Sv2, since Stratum v1 devices cannot open channels themselves). Both options have some practical use cases. In either case, proxies SHOULD aggregate clients' Channels into a smaller number of Connections. This saves network traffic for broadcast messages sent by a server because fewer messages need to be sent in total, which leads to lower latencies as a result. And it further increases efficiency by allowing larger packets to be sent.

The protocol defines three types of Channels: Standard Channel, Extended Channel and Group Channel, which are useful for different purposes.

5.2.1 Standard Channel

Standard Channels are created by end Mining Devices.

When an end Mining Device opens a Standard Channel with an upstream, it is restricted to Standard Jobs (via REQUIRES_STANDARD_JOBS bit flag of SetupConnection message).

However, a Proxy could also transparently relay the Standard Channels from the downstream Mining Devices into new upstream Connections. In this case, the REQUIRES_STANDARD_JOBS bit flag will not be set for the SetupConnection message. This indicates that on this Connection, the Standard Channels can be assembled into a Group Channel and receive Extended Jobs for efficient distribution downstream.

Then, the Connections between the Proxy and Mining Devices will receive Standard Jobs that were efficiently distributed from the Extended Jobs. The Merkle Root of each Standard Job is calculated by the Proxy, taking in consideration the extranonce_prefix that was assigned to each Standard Channel, plus the coinbase_tx_prefix and the coinbase_tx_suffix that were sent on the Extended Job. No extranonce field is used in this scenario.

5.2.2 Extended Channel

Extended Channels are intended to be used by Proxies for a more efficient distribution of hashing space.

An Extended Channel carries the following properties:

• extranonce_prefix: the Extended Extranonce bytes that were already allocated by the upstream server.
• extranonce_size: how many bytes are available for the locally reserved and downstream reserved areas of the Extended Extranonce.

Upstream servers which accept connections and provide work MUST support Extended Channels. Clients, on the other hand, do not have to support Extended Channels, as they MAY be implemented more simply with only Standard Channels at the end-device level. Upstream servers providing work MUST also accept Standard Channels unless they set REQUIRES_EXTENDED_CHANNELS for the connection as specified in §5.3.1.

The size of search space for an Extended Channel is 2^(nonce_bits + version_rolling_bits + extranonce_size*8) per nTime value.

5.2.3 Group Channel

Extended or Standard Channels opened within one particular connection can be grouped together to be addressable by a common communication group channel.

Every mining channel is a member of a group identified by its group_channel_id. Group Channel ID namespace is the same as Mining Channel ID namespace on a particular connection. In other words, there must never be a Group Channel whose group_channel_id is identical to some channel_id of some Standard or Extended Channel within the context of the same connection.

All channels under the same Group Channel (Extended and Standard) MUST have the exact same size for the full Extended Extranonce (extranonce_prefix for Standard Channels, or extranonce_prefix + extranonce for Extended Channels).

5.3 Mining Protocol Messages

5.3.1 SetupConnection Flags for Mining Protocol

Flags usable in SetupConnection.flags and SetupConnection.Error.flags, where bit 0 is the least significant bit of the u32 type:

Flags usable in SetupConnection.Success.flags:

A server MAY require Extended Channels on a connection by setting REQUIRES_EXTENDED_CHANNELS, as anticipated by §5.2.2. A client receiving this flag MUST NOT request a Standard Channel on that connection. If it does, the server MUST respond with OpenMiningChannel.Error.

REQUIRES_EXTENDED_CHANNELS cannot be honored for a client that set REQUIRES_STANDARD_JOBS in SetupConnection.flags, as such a client cannot work on Extended Channels. A server that does not serve Standard Channels MUST instead reject that client's SetupConnection with SetupConnection.Error, with REQUIRES_STANDARD_JOBS set in the error's flags field, consistent with the unsupported-flags reporting rule in §3.6.3.

5.3.2 OpenStandardMiningChannel (Client -> Server)

This message requests to open a standard channel to the upstream node.

After receiving a SetupConnection.Success message, the client SHOULD respond by opening channels on the connection. If no channels are opened within a reasonable period the server SHOULD close the connection for inactivity.

Every client SHOULD start its communication with an upstream node by opening a channel, which is necessary for almost all later communication. The upstream node either passes opening the channel further or has enough local information to handle channel opening on its own (this is mainly intended for proxies that translate between Sv1 and Sv2 on behalf of Stratum v1 downstream devices). Clients must also communicate information about their hashing power in order to receive well-calibrated job assignments.

5.3.3 OpenStandardMiningChannel.Success (Server -> Client)

Sent as a response for opening a standard channel, if successful.

5.3.4 OpenExtendedMiningChannel (Client -> Server)

Similar to 5.3.2 OpenStandardMiningChannel, but requests to open an extended channel instead of standard channel.

5.3.5 OpenExtendedMiningChannel.Success (Server -> Client)

Sent as a response for opening an extended channel.

5.3.6 OpenMiningChannel.Error (Server -> Client)

5.3.7 UpdateChannel (Client -> Server)

Client notifies the server about changes on the specified channel. If a client performs device/connection aggregation (i.e. it is a proxy), it MUST send this message when downstream channels change. This update can be debounced so that it is not sent more often than once in a second (for a very busy proxy).

When max_target is smaller than the channel’s current target, the upstream node MUST reflect the client’s request (and send an appropriate SetTarget message).

5.3.8 UpdateChannel.Error (Server -> Client)

Sent only when UpdateChannel message is invalid. When it is accepted by the server, no response is sent back.

5.3.9 CloseChannel (Client -> Server, Server -> Client)

Client sends this message when it ends its operation. The server MUST stop sending messages for the channel. A proxy MUST send this message on behalf of all opened channels from a downstream connection in case of downstream connection closure.

The reason_code field is subject to the same character restrictions as error codes (see Section 3.5).

If a proxy is operating in channel aggregating mode (translating downstream channels into aggregated extended upstream channels), it MUST send an UpdateChannel message when it receives CloseChannel or connection closure from a downstream connection. In general, proxy servers MUST keep the upstream node notified about the real state of the downstream channels.

If channel_id is addressing a group channel, all channels belonging to such group MUST be closed.

5.3.10 SetExtranoncePrefix (Server -> Client)

Changes channel’s extranonce prefix. It is applicable for all jobs sent after this message on a given channel (both jobs provided by the upstream or jobs introduced by SetCustomMiningJob message). This message is applicable only for explicitly opened extended channels or standard channels (not group channels). A client receiving SetExtranoncePrefix addressed to a group channel MUST ignore it.

5.3.11 SubmitSharesStandard (Client -> Server)

Client sends result of its hashing work to the server.

5.3.12 SubmitSharesExtended (Client -> Server)

Only relevant for extended channels. The message is the same as SubmitSharesStandard, with the following additional field:

For extended channels, the ntime constraint from SubmitSharesStandard also applies, with the ntime_start potentially supplied by NewExtendedMiningJob (for immediately active jobs) or SetCustomMiningJob. For a Custom Job, ntime_start is chosen by the Client rather than the Server, and the Server validates it as described in Section 5.3.18.

When submitting work for a custom job, job_id MUST be the identifier returned by SetCustomMiningJob.Success.

5.3.13 SubmitShares.Success (Server -> Client)

Response to SubmitSharesStandard or SubmitSharesExtended, accepting results from the miner. A server MAY aggregate acknowledgements for multiple successful share-submission messages from the same channel into a single SubmitShares.Success response.

The server does not have to double check that the sequence numbers sent by a client are actually increasing. It can simply use the last one received when sending a response. It is the client’s responsibility to keep the sequence numbers correct/useful.

The illustration below assumes a mining server that acknowledges every 10 successful submissions, and that a SetTarget message was sent to increase the difficulty from Da to Db in the middle of the batch submission.

Please note that new_submits_accepted_count and new_shares_sum carry meaning within the batch being acknowledged, and their respective counters MUST be reset when a new batch starts being processed.

5.3.14 SubmitShares.Error (Server -> Client)

An error is immediately submitted for every incorrect submit attempt. In case the server is not able to immediately validate the submission, the error is sent as soon as the result is known. This delayed validation can occur when a miner gets faster updates about a new prevhash than the server does (see SetNewPrevHash message for details).

The illustration below also assumes a mining server that acknowledges every 10 successful submissions.

5.3.15 NewMiningJob (Server -> Client)

The server provides an updated mining job to the client through a standard channel. This MUST be the first message after the channel has been successfully opened, whether or not REQUIRES_STANDARD_JOBS is set. This first message MUST have ntime_start unset (a future job). Without REQUIRES_STANDARD_JOBS, the server MAY then serve the channel through its group channel with NewExtendedMiningJob (see §5.2.1).

If the ntime_start field is set, the client MUST start to mine on the new job immediately after receiving this message, and use the value for the initial nTime. When set, ntime_start MUST NOT be lower than the ntime_start of the most recent SetNewPrevHash applicable to the channel, since the job is mined against that message's prev_hash.

The server MUST NOT assign a job_id that is already in use by another currently valid job on the same channel.

5.3.16 NewExtendedMiningJob (Server -> Client)

(Extended and group channels only)

For an extended channel: The whole search space of the job is owned by the specified channel. If the ntime_start field is set to some nTime, the client MUST start to mine on the new job as soon as possible after receiving this message. When set, ntime_start MUST NOT be lower than the ntime_start of the most recent SetNewPrevHash applicable to the channel, since the job is mined against that message's prev_hash. This MUST be the first message after an extended channel has been successfully opened. This first message MUST have ntime_start unset (future job).

For a group channel: This acts as a broadcast message that distributes work to all channels under the same group with one single message, instead of one per channel.

The proxy MAY transform this multicast variant for downstream standard channels into NewMiningJob messages by computing the derived Merkle root for them. A proxy MUST translate the message into NewMiningJob for all downstream standard channels belonging to the group in case the SetupConnection message had the REQUIRES_STANDARD_JOBS flag set (intended and expected behavior for end mining devices).

The server MUST NOT assign a job_id that is already in use by another currently valid job on the same channel.

*The full coinbase is constructed by inserting one of the following:

• For a standard channel: extranonce_prefix
• For an extended channel: extranonce_prefix + extranonce (=N bytes), where N is the negotiated extranonce space for the channel (OpenExtendedMiningChannel.Success.extranonce_size)

*If the original coinbase is a SegWit transaction, coinbase_tx_prefix and coinbase_tx_suffix MUST be stripped of BIP141 fields (marker, flag, witness count, witness length and witness reserved value).

The merkle root is then calculated as follows:

# Build the coinbase transaction
          coinbase_tx = concatenate(
              coinbase_tx_prefix,
              extranonce_prefix,
              extranonce, # null if standard channel
              coinbase_tx_suffix
          )

          # txid of the coinbase transaction (not wtxid, as coinbase_tx_prefix and coinbase_tx_suffix were stripped of BIP141)
          coinbase_txid = SHA256(SHA256(coinbase_tx))

          # Compute the Merkle root by folding over the Merkle path
          raw_merkle_root = coinbase_txid
          for each merkle_leaf in merkle_path:
              data = concatenate(raw_merkle_root, merkle_leaf as little_endian_bytes)
              raw_merkle_root = SHA256(SHA256(data))

          # Interpret the final 32-byte hash as a 256-bit integer in little-endian form
          merkle_root = Uint256(little_endian_bytes = raw_merkle_root)


5.3.17 SetNewPrevHash (Server -> Client, broadcast)

Prevhash is distributed whenever a new block is detected in the network by an upstream node or when a new downstream opens a channel.

This message MAY be shared by all downstream nodes (sent only once to each group channel). Clients MUST immediately start to mine on the provided prevhash. When a client receives this message, only the job referenced by Job ID is valid. The remaining jobs already queued by the client have to be made invalid. Shares submitted for jobs invalidated by a previous SetNewPrevHash (stale shares) SHOULD be rejected by the server. The server MUST NOT send this message referencing a job_id that was not previously sent as a future job (i.e. with ntime_start unset) on the corresponding channel. The server MUST ensure that ntime_start is a consensus-valid nTime for the block following prev_hash (in particular, greater than that chain's median-time-past).

Note: There is no need for block height in this message.

5.3.18 SetCustomMiningJob (Client -> Server)

Can be sent only on extended or group channel. If the group channel contains standard channels, the server MUST ignore those.

SetupConnection.flags MUST contain REQUIRES_WORK_SELECTION flag (work selection feature successfully declared).

This message signals that JDC expects to be rewarded for working on a Custom Job.

Since a Custom Job carries its own prev_hash, its ntime_start is not bound by any SetNewPrevHash sent by the server. Instead, the server MUST validate that ntime_start is a consensus-valid nTime for the block following prev_hash (in particular, greater than that chain's median-time-past), responding with SetCustomMiningJob.Error otherwise.

5.3.19 SetCustomMiningJob.Success (Server -> Client)

Response from the Pool when it accepts the custom mining job.

Up until receiving this message (and after having all the necessary information to start hashing), the miner SHOULD start hashing and buffer the work optimistically.

This message acts as a commitment from the Pool to rewarding this job. In case the Pool does not commit (either by timeout, or responding with SetCustomMiningJob.Error), the miner SHOULD fall back to a different Pool (or solo).

After receiving it, the miner can start submitting shares for this job immediately (by using the job_id provided within this response).

*The full coinbase is constructed by inserting one of the following:

• For a standard channel: extranonce_prefix
• For an extended channel: extranonce_prefix + extranonce (=N bytes), where N is the negotiated extranonce space for the channel (OpenExtendedMiningChannel.Success.extranonce_size)

5.3.20 SetCustomMiningJob.Error (Server -> Client)

5.3.21 SetTarget (Server -> Client)

The server controls the submission rate by adjusting the difficulty target on a specified channel. All submits leading to hashes higher than the specified target will be rejected by the server.

The target is valid until the next SetTarget message is sent and is applicable for all jobs received on the channel in the future or already received with an empty ntime_start. The message is not applicable for already received jobs with ntime_start=nTime, as their target remains stable.

When SetTarget is sent to a group channel, the target is applicable to all channels in the group, and the bound above applies to each of them.

UpdateChannel and SetTarget can cross on the connection, since the client and the server send them independently of each other. A client that lowers max_target with an UpdateChannel can therefore still receive a SetTarget whose target is above the new value, sent before the server accepted that UpdateChannel. The bound above holds such a SetTarget to the previous max_target, the one the UpdateChannel replaces, not to the new value.

When the server then accepts the UpdateChannel, §5.3.7 requires it to send a new SetTarget that respects the new max_target. A server that does not accept the UpdateChannel responds with UpdateChannel.Error instead, and the bound stays at the previous max_target.

An accepted UpdateChannel has no response (§5.3.8), so a client cannot tell whether a SetTarget was sent before or after the server accepted it. A client that lowers max_target SHOULD allow the server a reasonable grace period to send the new SetTarget or the UpdateChannel.Error before treating a target above the new value as a violation of the bound (for instance: by falling back to a different server). The grace period ends when the UpdateChannel.Error arrives, or when the time the client allowed runs out. A SetTarget within the new max_target does not end it, since it may have been sent before the server accepted the UpdateChannel. The target of a SetTarget received during the grace period still applies until the next one, like any other.

A target above the previous max_target violates the bound, regardless of whether the SetTarget was sent before or after the server accepted the UpdateChannel. The client does not need to allow the grace period for it.

A client SHOULD NOT change max_target again before the grace period has passed. Otherwise it could not tell whether a SetTarget is bound by the max_target before the first change, by the first, or by the second.

5.3.22 SetGroupChannel (Server -> Client)

The group channel is used mainly for efficient job distribution to multiple mining channels (either standard and/or extended).

If we want to allow different jobs to be served to different mining channels (e.g. because of different BIP 8 version bits) and still be able to distribute the work by sending NewExtendendedMiningJob instead of a repeated NewMiningJob and/or NewExtendedMiningJob, we need a more fine-grained grouping for standard channels.

This message associates a set of mining channels with a group channel. A channel (identified by particular ID) becomes a group channel when it is used by this message as group_channel_id. The server MUST ensure that a group channel has a unique channel ID within one connection. Channel reinterpretation is not allowed.

This message can be sent only to connections that don’t have REQUIRES_STANDARD_JOBS flag in SetupConnection.

All channels under the same Group Channel (Extended and Standard) MUST have the exact same size for the full Extended Extranonce (extranonce_prefix for Standard Channels, or extranonce_prefix + extranonce for Extended Channels).
